This 7 inch wireless reversing camera kit features a HD monitor with built-in DVR recording and four cameras for full vehicle coverage. Designed for caravans, utes and light commercial vehicles, it provides clear visibility, improved safety and easy installation in Australian conditions.
Key Features:
- 7 inch HD monitor with quad view
- Built-in DVR recording
- 4 x wireless cameras
- 110° wide viewing angle
- Expandable system up to 4 cameras
- Stable digital wireless signal
- Ideal for light commercial and domestic use
- Easy installation with no long cable runs
7 inch AHD Monitor
Wireless Range Up to 100 Metres
The digital wireless system provides a stable, interference-resistant signal at distances of up to 100 metres in clear line-of-sight conditions. Obstacles in the way of the wireless signal will reduce the wireless distance slightly.
Monitor Viewing Configurations
Two Mounting Options - Fan Bracket or U-Shaped bracket
Fan Bracket Monitor Mount
Fan bracket comes with an adhesive pad.
U-Shaped Monitor Bracket Mount
Steel Bracket
Suction Mounting Bracket Options
A suction bracket can be purchased as an optional extra by clicking on the "Suction Bracket" Tab.
Guidelines Adjustable
Hold the SEL Button, when guide lines flash press + or - to adjust
DVR Monitor
The SD Card requires speed equal to or greater than Class 10, Supports up to 128G. SD Card Not Included.
When an SD card is inserted, the monitor records exactly what is shown on the screen. For example, if the display shows a dual-screen view, both cameras are recorded; if it shows only Channel 1, then only that camera is recorded. The monitor supports loop recording, automatically overwriting the oldest footage when the card becomes full.
IP69K Waterproof Reversing AHD Camera
Digital Wireless Extension Antenna (ADWC).
5dBi Signal Boost, 3-meter cable that screws onto a camera or monitor, offering the flexibility to extend the antenna.
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.

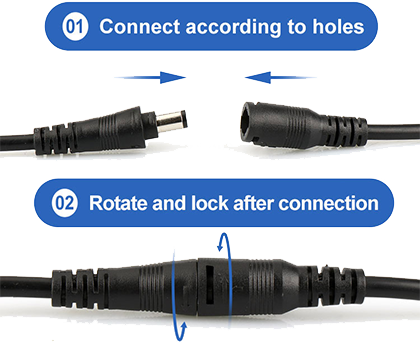

Lock Camera & Power Cable Connections
Ensure that the twist lock connection is fitted with the rubber cover and positioned securely over the junction. Additionally, it is advisable, if these connections are expected to be exposed to the elements, to wrap them with insulation tape to prevent water ingress.
How to Assemble the Fan Bracket
Kit Includes
| • 1 x TR-DWHQM7VKRec 7inch 720P IPS Screen Quad Digital Wireless Reversing Monitor |
| • 4 x TR-DWHCVK 1/3" CMOS Colour AHD Digital Wireless Reversing Cameras 110° |
| • 5 x Antenna (1 for Monitor and 4 for Cameras) |
| • Electrical Connecting Cables |
| • U-Shaped Monitor Bracket and a Fan Bracket |
| • User Guide |
| • Monitor Supports Four Cameras |
| • One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
Monitor Dimensions
Installing the Monitor to Power DC 12 ~ 24V
It is recommended that the monitor is hardwired to a constant power source and the cigarette lighter power source is not used.
Monitor Has New DC Female Plug With Twist Lock Connection
720P AHD 7" Quad Digital Wireless Revering Monitor Built-in DVR (TR-DWHQM7VKRec) |
| • 7inch AHD Digital Wireless IPS Colour Quad Screen (Built-in DVR With Removable Sun Visor) |
| • Operating Frequency:2400~2483.5MHZ |
| • Resolution: 1024 x 600 |
| • SD Card: Max Support 128G (SD Card Running Speed Greater Than Class 10) |
| • Transmitted Power: 23db |
| • Response Time: 25ms |
| • Monitor Menu: Brightness, Contrast, Saturation, Parking Lines ON/OFF |
| • Contrast: 500:1 |
| • System: PAL/NTSC(Auto) |
| • Brightness: 800 cd/m² |
| • Open Area Transmission Distance: 150m clear line of sight |
| • Back Light Luminance: IPS Colour Screen |
| • Power supply: DC 12~24V |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • Outer Dimension:180(W) X 117(H) X 23 (T) mm |
| • U Type Bracket and Fan Bracket |
| • One Year Warranty |
Camera Dimensions
720p AHD Digital Wireless Reverse Camera 110° (TR-DWHCVK) |
| • Image Sensor: 1/3" AHD Colour CMOS |
| • Viewing Angle: 110° |
| • Effective Pixels: 1280 x 720p |
| • Minimum Illumination: 0.5Lux |
| • Infrared LED Light: 4pcs |
| • Operating Frequency: 2400MHz ~ 2483.5MHz(Built in 2.4GHz Digital wireless transmitter) |
| • Shell material: Aluminum Alloy |
| • Waterproof range: IP69K |
| • Power Supply: DC 12 ~24V |
| • Working temperature: -20℃ ~ +70℃ |
| • Storage Temperature: -30℃~ + 80℃ |
| • One Year Warranty |
