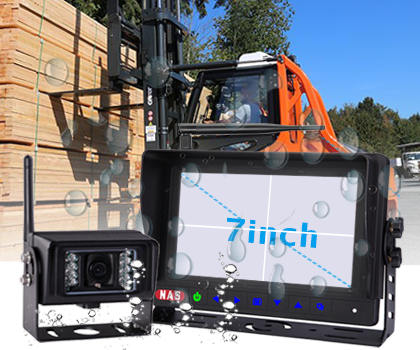

Waterproof 7 Inch Wireless Forklift Camera System – HD Monitor IP68 Camera IP69K
This waterproof 7 inch wireless forklift camera system is designed for harsh industrial and outdoor environments across Australia, delivering reliable visibility and improved safety in all conditions. The AHD digital monitor provides a clear, high-resolution image, helping operators reduce blind spots and operate with confidence. Featuring an IP68 waterproof monitor and IP69K rated camera, this system is built to withstand exposure to rain, dust, washdown environments, and extreme working conditions. It is ideal for forklifts, open tractors, farm machinery, and vehicles operating in exposed environments. The digital wireless connection ensures a stable, interference-free signal without complex wiring, allowing flexible installation within the cabin. This industrial grade system is built for durability and is suited to warehouses, agriculture, transport yards, and heavy-duty applications where reliability is essential.
7inch Digital Wireless Monitor
Supports four reversing cameras
Wireless Range Up to 200 Metres
The digital wireless system provides a stable, interference-resistant signal at distances of up to 200 metres in clear line-of-sight conditions. Obstacles in the way of the wireless signal will reduce the wireless distance slightly.
Monitor Viewing Configurations
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Add Accessories" Tab.
Waterproof Reversing HD Camera IP69K
Camera Angles - 100°，60° & 35° optional
DC12V Mobile Battery Pack
This 12V portable battery pack powers wireless reversing cameras without wiring. Featuring an IP67 waterproof aluminum housing and a strong magnetic base, it ensures secure, flexible camera placement for trucks, caravans, and industrial use.
KDW12VPP26 Approx.14 Hours No IR Usage
A 12V mobile battery pack can be purchased as an optional extra by clicking on the drop down box labelled "Battery - Is a Battery Pack Required" .
Digital Wireless Extension Antenna (ADWC).
5dBi Signal Boost, 3-meter cable that screws onto a camera or monitor, offering the flexibility to extend the antenna.
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
3m Extension Cable
Connects to the Above Extension Antennas ADWC.
Extension cable can be connected to the Digital Wireless Cabled Extension Antenna – 5dBi (R-ADWC) giving an overall length of 6m.
14dBi Wireless Directional Panel Antenna (A14dBi）
High Gain Long Range
Antennas cable length - 5M
Boost the reach of your digital wireless kits using this high-grain, long-range antenna. If your monitor suffers from reception loss, this antenna markedly reinforces the signal. Farmers trust it to counter signal loss caused by grain dust, and it's equally valuable on road trains for increased signal strength. Optimal placement is on the back of the truck cab, making it versatile for various applications experiencing signal loss.
5m Extension Cable (EXT5mA14dBi)
For 14dBi Panel Antenna
5m Extension Cable that Connects to the Above 14dBi Panel Antenna providing an overall length of 10m. Excess cable can be rolled up.
Camera Magnetic Base
Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability. The Magnet has a Very Strong Magnetic Hold.
A magnetic base can be purchased as an optional extra by clicking on the "Add Accessories" Tab
Secure Twist Lock Camera and Power cable Connections
Ensure that the twist lock connection is fitted with the rubber cover and positioned securely over the junction. Additionally, it is advisable, if these connections are expected to be exposed to the elements, to wrap them with insulation tape to prevent water ingress.
7" Digital Wireless Camera Kit (HDKDWWPQ71PP-Concord) |
| • Wireless Range up to 200m Clear Line of Sight |
| • The monitor can be viewed in Single, Split, three camera split or quad display mode. |
| • Wireless eliminates running cables through machinery. |
| • Power ~ Monitor and Cameras 12DC-32V |
| • Suitable for 12V and 24V Trucks and Farming Machinery |
| • The equipment is tough and is made specifically for farming, industrial and mining machinery. |
| Kit Includes |
| • 1 x HDKDWWPQ7 High Quality 7" HD IPS Screen Digital Wireless IP68 Waterproof Monitor |
| • 1 x HDKDW04 Wireless 1/3inch CMOS High Resolution 1080P IR CUT Reversing Camera |
| • 2 x Antenna ( 1 for monitor, 1 for Camera) |
| • Electrical Connecting Cables |
| • U-Support Bracket |
| • Manual |
| • Monitor Two Year Warranty, Camera One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
HD 7" Quad IP68 Waterproof Digital Wireless Monitor (HDKDWWPQ7)
Monitor Dimensions
Monitor Key
Monitoring Harness
Monitor harnesses have trigger cables that are typically White, Brown, Yellow, Green, and/or Blue. These do not need to be connected unless you want a camera to activate automatically, like when the vehicle shifts into reverse. Connecting the trigger wires means you will not be able to view the camera constantly while driving. If you choose not to connect them, wrap each trigger cable individually in insulation tape.
| • 7" IPS HD Digital Wireless Waterproof Monitor with Removable Sun Visor and Touch Buttons |
| • Built-in 2.4G digital wireless receiver |
| • View Monitor Screen: Quad / Three Way Split / Single screen / Split Dual Screen Display |
| • Operation Frequency Range: 2400 ~ 2483.5MHz |
| • Receiving Sensitivity：≤-86dBm(1MHZ QPSK MD300RE) |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) x 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Waterproof: IP68 |
| • Time Delay (ms): 200ms |
| • Transmission Distance: 200m (No Barriers) |
| • Wide View Angle (LR/UD) : (U/D) : 85/85 (L/R) : 85/85 |
| • Brightness (cd/m²): 600 |
| • Contrast ratio: 800:1 |
| • Monitor Current: DC9V: 530mA (± 30mA) ; DC32V: 150mA (± 30mA) |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC10~32V (5W Max) |
| • External dimensions :(L x W x T) (220 x 149 x 84mm)(Including Sun Visor and U-bracket ) |
| • Weight Approx: 1440g |
| • Two Year Warranty |
HD 1080P Digital Wireless Camera
Camera Angles - 100°，60° and 35° optional. Default: 100°
Camera Dimensions
1080P HD Digital Wireless Camera (HDKDW04) |
| • Free viewing angle: 100°,60 and 35° optional |
| • Waterproof: IP69K |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤200m |
| • IR-function: Automatic switching |
| • Resolution: 1080P |
| • Effective pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 0Lux (18pcs IR LED's for Night Vision) |
| • Infrared distance: ≤15m |
| • Shell material: Aluminum alloy |
| • Free Operating Voltage: DC12-32 Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 107(W) x 75(H) x 70.5(D) mm (without mounting) |
| • Weight : 450g |
| • One Year Warranty |
DC12V Mobile Power With Aluminium Alloy Housing IP67 Waterproof Stronger Magnetic Base Mount
3.5 hours Fully Charged Approx. 14 hours of power to operate one digital wireless camera if there is not any Camera IR light Usage. Approx. 7 Hours if the Camera is running on full IR Lights because there is no external light source.
Fast charge, input/output overvoltage protection, overcharge/discharge protection, input overcurrent protection, short circuit protection, reset protection, temperature protection, Light load protection, battery PTC(Positive Temperature Coefficient) protection.Supports QC fast charging from 5V to 12V. Over 500 Cycle Lifespan.
18650 Li-ion Cells DC12V Mobile Power (R-KDW12VPP26) |
| • Type Battery ：Li-ion battery (Panasonic 18650 Lithium-ion cell original import) |
| • Cell Capacity ：3300mAh / 11.1V 36Wh |
| • Cell Energy : 36.6Wh |
| • Rated Capacity ：2500mAh/ 12V 30Wh |
| • Type-C Input (support fast charge)：5(V)3A -9V/(2A) -12V(1.5A) |
| • Fast Charge Mode ：QC 2.0/3.0 Agreement 9V/2A, 12V/1.5A (USB adapter needs to carry own QC agreement) |
| • DC Iuput (DC5.5 *2.1) ：12V / 1A (12W Typ.) |
| • Charging Method ：Constant Current (CC) 2A (0.2C) to 4.2V cut-off charge ; Constant Voltage (CV) 4.2V 100mA to charge off; 5A (0.5C) Charging |
| • Maximum Input Power : 18V |
| • Input Current: 1.5A ± 10% |
| • Maximum Input Current : ≤2A |
| • Output Voltage: 12V ± 5% （Actual Output Range: 11.4~12.6V ± 5%) |
| • Output Current: 1.0A ±10%(Output Current Range: 0.06~1A) |
| • Conversion Efficiency: ≥85% |
| • Power Stability Accuracy: ≤10% |
| • Noise Level: ≤50dB |
| • Charging Overvoltage Protection (Cell): 12.6V |
| • Charging Overcurrent Protection (SW): 1.5A |
| • Discharging Undervoltage Protection (Cell): 8.4V |
| • Discharging Undervoltage Protection (SW): 9.3V |
| • Output Overcurrent Protection: ≥1.5A |
| • Charging times: > 500 cycles |
| • Charge Interface:Type-C |
| • Discharge Interface: DC 2.1 * 5.5 male |
| • Seismic Level: 5G |
| • Waterproof Level: IP67 |
| • Installation: With Strong Magnetic |
| • Charging Working Temperature: 0 ℃ to + 45℃ |
| • Discharge Working Temperature: -10℃ to + 50 ℃ |
| • Storage Temperature: -30 ℃ to + 60 ℃ |
| • Dimensions (mm): 108mm x 75mm x 29.5mm (without tails) |
| • Housing: Aluminium Alloy |
| • Installation: Magnetic Mounting (Built-in N52-D15H4 Strong Magnet) Front Pulling Force >25KG, Side Pulling Force >12KG |
| • Input Interface: Type-C |
| • Output Interface: DC5.5/2.1 Male |
| • Weight: 700g |
| • One Year Warranty |
Battery Dimensions: mm
| 4 High-Brightness Blue LED Indicators, Activated by Button Press |
| BATTERY CHARGING And DISCHARGING STATE |
| • 1 LED flashing, the battery power: 0~25% |
| • 2 LED On, 1 LED flashing, the battery power: 25~50% |
| • 3 LED On, 1 LED flashing, the battery power: 50~75% |
| • 4 LDE on, 1 LDE flashing, the battery power is 75~99% |
| • 4 LDE on, the battery power is 100% |
| • The battery charging time is approx.2~4 Hours |
| • Using a DC12V/2A USB charger will take approx. 2 Hours |
| • One Illuminated Green LED : Working Condition |
| • First Blue LED Flashing : Low Voltage Warning ( when voltage drops below 9.5V) |
| • Heat Dissipation Method: Natural Air Cooling |
| • Relative Humidity: 10%~90% |
Strong magnetic camera / monitor base that attaches to the camera or monitor bracket that can be mounted onto magnetic surfaces.
Camera Magnet Bracket |
| • Products Compatible：NAS Cameras With U-Support Brackets |
| • Testing Standard：The 4.12.4 Term Of ISO16750-3 For Vibration Test- Able To Keep Still For 8 Hours When The Value Of Root Mean Square is 27.8m/s² |
| • Installation Instruction：Fix The Magnetic Base To The U-Support Bracket of Camera And Attach the Camera To The Vehicle |
| • Accessories：Washer d5 x 1, spring washer d5 x 1, hex-head screw M5 x 8 |
Front View:
Back View:
Dimensions: mm
Accessories
Application: Fix The Magnetic Base To The U-Support Bracket of Camera And Attach the Camera To The Vehicle
