This waterproof 7 inch wireless forklift camera system provides clear visibility in wet, dusty and demanding industrial environments. It includes an IP68 waterproof monitor and a 1080P stainless-steel forklift camera with a focused 52° viewing angle.
The digital wireless connection simplifies installation, while the camera can be hardwired to 12V or powered by an optional rechargeable battery pack. Suitable for warehouses, logistics operations and heavy-duty forklift applications.
Key Features
- 7 inch IP68 waterproof digital wireless monitor
- 1080P stainless-steel forklift camera
- Focused 52° camera viewing angle
- IP69K-rated camera
- Supports up to four cameras
- Camera range up to 100 metres in clear line-of-sight conditions
- Camera can be hardwired or powered by an optional battery pack
- Suitable for wet, dusty and demanding industrial environments

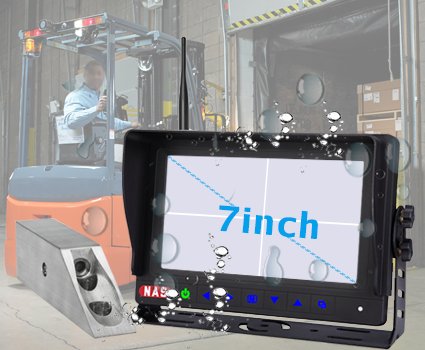

7inch Waterproof Digital Wireless Monitor Supports Four Cameras
A Live Image of a Forklift Camera Showing the Clarity

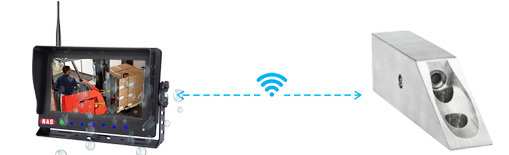

Wireless Range Up to 100 Metres
The digital wireless system provides a stable, interference-resistant signal at distances of up to 100 metres in clear line-of-sight conditions. Obstacles in the way of the wireless signal will reduce the wireless distance slightly.

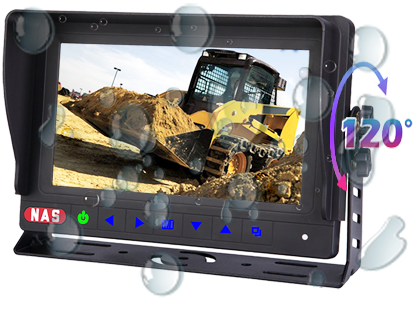

Monitor Viewing Configurations
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Monitor Bracket" Tab.
Stainless Steel Forklift Camera
IP69K waterproof 52° viewing angle, internal antenna 18dBm
Secure with screws.
Power Supply Options
The forklift camera can be powered by a battery pack or wired into a constant DC12V power supply.
DC12V Mobile Battery Pack
This 12V portable battery pack powers wireless reversing cameras without wiring. Featuring an IP67 waterproof aluminum housing and a strong magnetic base, it ensures secure, flexible camera placement for trucks, caravans, and industrial use.
KDW12VPP26 Approx.14 Hours No IR Usage
A 12V mobile battery pack can be purchased as an optional extra by clicking on the drop down box labelled "Battery - Is a Battery Pack Required" .
Digital Wireless Extension Antenna (ADWC).
5dBi Signal Boost, 3-meter cable that screws onto a camera or monitor, offering the flexibility to extend the antenna.
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
Lock Camera & Power Cable Connections

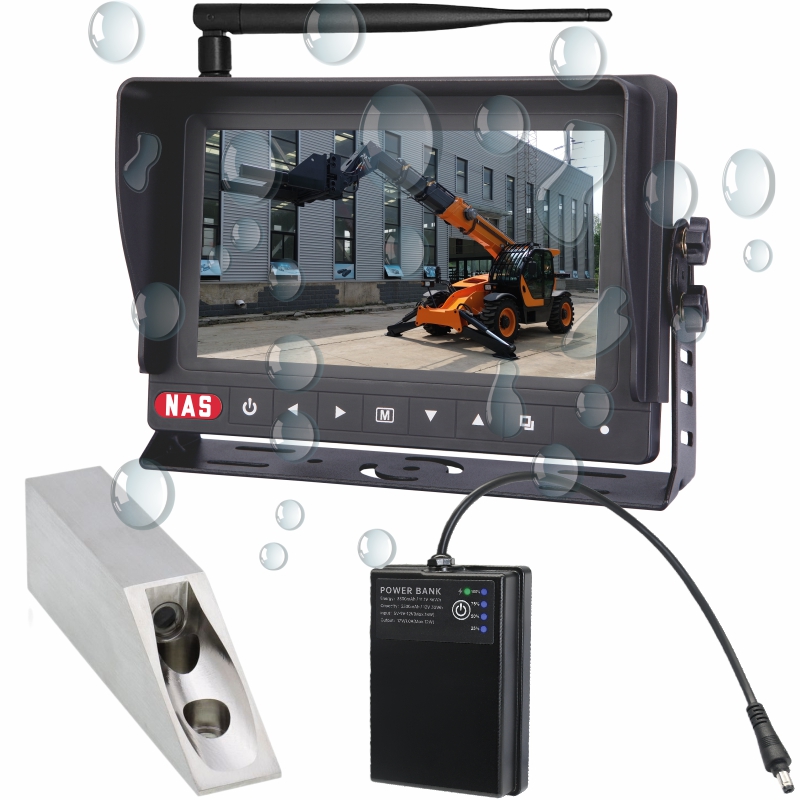

7" Digital Wireless Camera Kit (HDKDWWPQ7CFL52PP-Concord) |
| • Wireless Range up to 200m Clear Line of Sight (Forklift Camera 100m) |
| • The monitor can be viewed in Single, Split, three camera split or quad display mode. |
| • Wireless eliminates running cables through machinery. |
| • Power ~ Monitor DC12-32V, Camera DC12V |
| • Suitable for 12V and 24V Trucks and Farming Machinery |
| • The equipment is tough and is made specifically for farming, industrial and mining machinery. |
| Kit Includes |
| • 1 x HDKDWWPQ7 High Quality HD 7" IPS Screen Digital Wireless IP68 Waterproof Monitor |
| • 1 x CHDDWFL52 HD1080P Wireless 1/2.9 inch Colour CMOS |
| • 1 x KDW12VPP26 rechargeable 12V magnetic battery pack |
| • 1 x Antenna |
| • Electrical Connecting Cables |
| • U-Support Bracket |
| • Manual |
| • Monitor Two Year Warranty, Camera One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
HD 7" Quad IP68 Waterproof Digital Wireless Monitor (HDKDWWPQ7)
Monitor Dimensions
Monitor Key
Monitoring Harness
Monitor harnesses have trigger cables that are typically White, Brown, Yellow, Green, and/or Blue. These do not need to be connected unless you want a camera to activate automatically, like when the vehicle shifts into reverse. Connecting the trigger wires means you will not be able to view the camera constantly while driving. If you choose not to connect them, wrap each trigger cable individually in insulation tape.
| • 7" IPS HD Digital Wireless Waterproof Monitor with Removable Sun Visor and Touch Buttons |
| • Built-in 2.4G digital wireless receiver |
| • View Monitor Screen: Quad / Three Way Split / Single screen / Split Dual Screen Display |
| • Operation Frequency Range: 2400 ~ 2483.5MHz |
| • Receiving Sensitivity：≤-86dBm(1MHZ QPSK MD300RE) |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) x 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Waterproof: IP68 |
| • Time Delay (ms): 200ms |
| • Transmission Distance: 200m (No Barriers) |
| • Wide View Angle (LR/UD) : (U/D) : 85/85 (L/R) : 85/85 |
| • Brightness (cd/m²): 600 |
| • Contrast ratio: 800:1 |
| • Monitor Current: DC9V: 530mA (± 30mA) ; DC32V: 150mA (± 30mA) |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC10~32V (5W Max) |
| • External dimensions :(L x W x T) (220 x 149 x 84mm)(Including Sun Visor and U-bracket ) |
| • Weight Approx: 1440g |
| • Two Year Warranty |
2.4G Digital Wireless 1080P HD Forklift Camera
Stainless Steel and Secure with the screws.
Built-in Internal Antenna
Camera Dimensions
Camera Cable Interface Definition
1080P HD Digital Wireless Forklift Camera (CHDDWFL52) |
| • Free viewing angle: 52° |
| • Waterproof: IP69K (100% waterproof) |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤100m |
| • TV System: PAL (25fps) |
| • Resolution: 1080P |
| • Effective pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 0.1Lux |
| • Night Vision Mode: IR-CUT Automatic Switching |
| • Shell material: 304 Stainless Steel, anti-collision design |
| • Free Operating Voltage: DC12Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 127(W) x 37(H) x 24.5(D) mm (without mounting) |
| • Operating Temperature: -30 To + 70℃ Rh95% Max |
| • Storage Temperature: -40℃ To + 70℃ Rh95% Max |
| • Weight : 700g |
| • One Year Warranty |
DC12V Mobile Power With Aluminium Alloy Housing IP67 Waterproof Stronger Magnetic Base Mount
3.5 hours Fully Charged Approx. 14 hours of power to operate one digital wireless camera if there is not any Camera IR light Usage. Approx. 7 Hours if the Camera is running on full IR Lights because there is no external light source.
Fast charge, input/output overvoltage protection, overcharge/discharge protection, input overcurrent protection, short circuit protection, reset protection, temperature protection, Light load protection, battery PTC(Positive Temperature Coefficient) protection.Supports QC fast charging from 5V to 12V. Over 500 Cycle Lifespan.
18650 Li-ion Cells DC12V Mobile Power (R-KDW12VPP26) |
| • Type Battery ：Li-ion battery (Panasonic 18650 Lithium-ion cell original import) |
| • Cell Capacity ：3300mAh / 11.1V 36Wh |
| • Cell Energy : 36.6Wh |
| • Rated Capacity ：2500mAh/ 12V 30Wh |
| • Type-C Input (support fast charge)：5(V)3A -9V/(2A) -12V(1.5A) |
| • Fast Charge Mode ：QC 2.0/3.0 Agreement 9V/2A, 12V/1.5A (USB adapter needs to carry own QC agreement) |
| • DC Iuput (DC5.5 *2.1) ：12V / 1A (12W Typ.) |
| • Charging Method ：Constant Current (CC) 2A (0.2C) to 4.2V cut-off charge ; Constant Voltage (CV) 4.2V 100mA to charge off; 5A (0.5C) Charging |
| • Maximum Input Power : 18V |
| • Input Current: 1.5A ± 10% |
| • Maximum Input Current : ≤2A |
| • Output Voltage: 12V ± 5% （Actual Output Range: 11.4~12.6V ± 5%) |
| • Output Current: 1.0A ±10%(Output Current Range: 0.06~1A) |
| • Conversion Efficiency: ≥85% |
| • Power Stability Accuracy: ≤10% |
| • Noise Level: ≤50dB |
| • Charging Overvoltage Protection (Cell): 12.6V |
| • Charging Overcurrent Protection (SW): 1.5A |
| • Discharging Undervoltage Protection (Cell): 8.4V |
| • Discharging Undervoltage Protection (SW): 9.3V |
| • Output Overcurrent Protection: ≥1.5A |
| • Charging times: > 500 cycles |
| • Charge Interface:Type-C |
| • Discharge Interface: DC 2.1 * 5.5 male |
| • Seismic Level: 5G |
| • Waterproof Level: IP67 |
| • Installation: With Strong Magnetic |
| • Charging Working Temperature: 0 ℃ to + 45℃ |
| • Discharge Working Temperature: -10℃ to + 50 ℃ |
| • Storage Temperature: -30 ℃ to + 60 ℃ |
| • Dimensions (mm): 108mm x 75mm x 29.5mm (without tails) |
| • Housing: Aluminium Alloy |
| • Installation: Magnetic Mounting (Built-in N52-D15H4 Strong Magnet) Front Pulling Force >25KG, Side Pulling Force >12KG |
| • Input Interface: Type-C |
| • Output Interface: DC5.5/2.1 Male |
| • Weight: 700g |
| • One Year Warranty |
Battery Dimensions: mm
| 4 High-Brightness Blue LED Indicators, Activated by Button Press |
| BATTERY CHARGING And DISCHARGING STATE |
| • 1 LED flashing, the battery power: 0~25% |
| • 2 LED On, 1 LED flashing, the battery power: 25~50% |
| • 3 LED On, 1 LED flashing, the battery power: 50~75% |
| • 4 LDE on, 1 LDE flashing, the battery power is 75~99% |
| • 4 LDE on, the battery power is 100% |
| • The battery charging time is approx.2~4 Hours |
| • Using a DC12V/2A USB charger will take approx. 2 Hours |
| • One Illuminated Green LED : Working Condition |
| • First Blue LED Flashing : Low Voltage Warning ( when voltage drops below 9.5V) |
| • Heat Dissipation Method: Natural Air Cooling |
| • Relative Humidity: 10%~90% |
