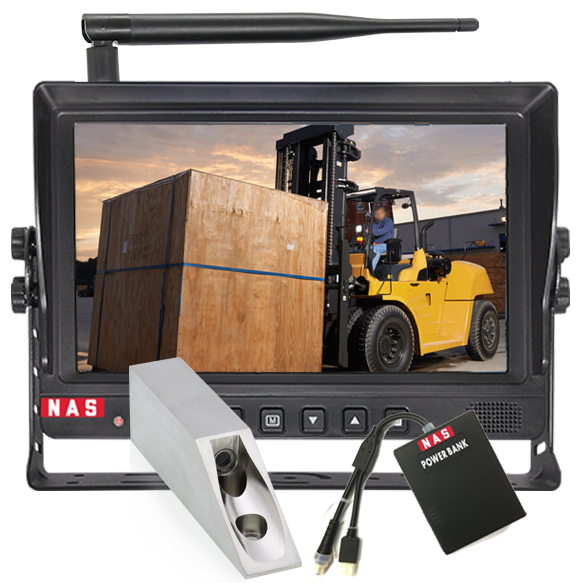

This 9 inch wireless forklift camera system is designed for industrial environments across Australia, improving safety, visibility, and operational control. The HD digital monitor provides a clear, high-resolution image, helping operators reduce blind spots and work safely in busy worksites.
The system includes a stainless steel forklift camera with a 52 degree viewing angle, delivering focused visibility for precise operation. Built for durability, the camera is suited to harsh environments where dust, moisture, and heavy use are common.
The digital wireless connection ensures a stable, interference-free signal without complex wiring, allowing flexible installation within the cabin. With quad view capability supporting up to four cameras, operators gain greater awareness around the forklift for safer operation.
This industrial grade system is ideal for warehouses, logistics operations, and heavy-duty applications where reliability and performance are essential.

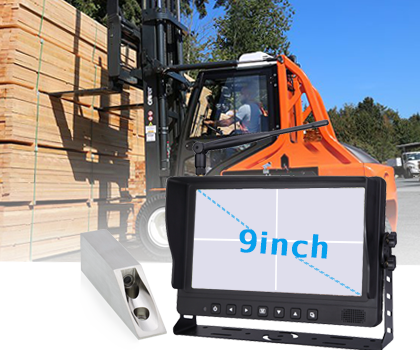

9inch HD Digital Wireless Monitor Supports Four Reversing Cameras

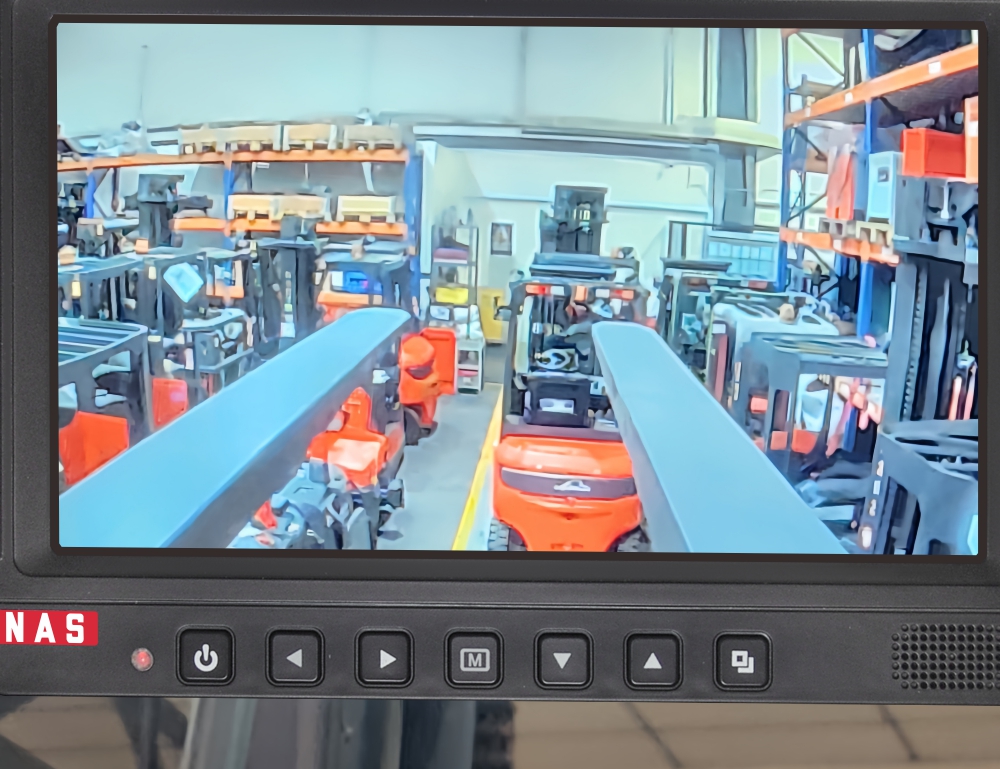

A Live Image of a Forklift Camera Showing the Clarity

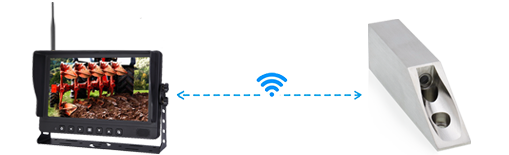

Wireless Range Up to 100 Metres
The digital wireless system provides a stable, interference-resistant signal at distances of up to 100 metres in clear line-of-sight conditions. Obstacles in the way of the wireless signal will reduce the wireless distance slightly.
Monitor Viewing Configurations
Mounting Bracket

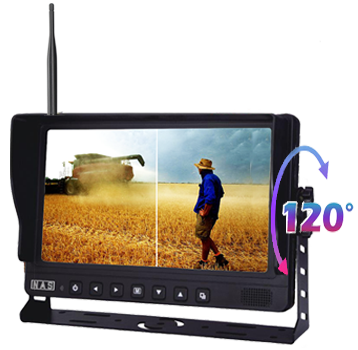

The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Waterproof Stainless Steel Forklift Camera IP69K 52° Viewing Angle
Wireless Range up to 100m, Internal Antenna 18dBm
Secure with screws.
The Forklift Camera can Be Powered By a Battery Pack or Wired into a Constant DC12V Power Supply.
DC12V Mobile Battery Packs with Aluminum Alloy Housing IP67 Waterproof Stronger Magnetic Bases for Powering Cameras
12V mobile battery packs with magnetic bases, designed for powering wireless reversing cameras without the need for wiring. These portable battery packs make the cameras completely mobile, offering unmatched flexibility for use in locations without access to a power source. Ideal for trucks, caravans, and industrial setups, the strong magnetic base ensures secure attachment. A perfect solution for on-the-go applications and versatile camera placement.
KDW12VPP26 Approx.14 Hours No IR Usage
A 12V mobile battery pack can be purchased as an optional extra by clicking on the drop down box labelled "Battery - Is a Battery Pack Required" .
Digital Wireless Extension Antenna 5dBi Signal Boost, 3-meter cable that screws onto the monitor, offering the flexibility to extend the antenna (ADWC).
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
Lock Camera & Power Cable Connections
9" Digital Wireless Camera Kit (HDKDWQ9CFL52-Concord) |
| • Wireless Range up to 200m Clear Line of Sight (Forklift Camera 100m) |
| • The monitor can be viewed in Single or Split display mode. |
| • Wireless eliminates running cables through machinery. |
| • Power ~ Monitor DC12-32V, Camera DC12V |
| • Suitable for 12V and 24V Trucks and Farming Machinery |
| • The equipment is tough and is made specifically for farming, industrial and mining machinery. |
| Kit Includes |
| • 1 x HDKDWQ9 High Quality HD 9" IPS Screen Digital Wireless Monitor |
| • 1 x CHDDWFL52 HD1080P Wireless 1/2.9 inch Colour CMOS |
| • 1 x Antenna |
| • Electrical Connecting Cables |
| • U-Support Bracket |
| • Manual |
| • Monitor Two Year Warranty, Camera One Year Warranty |
The images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image produced.
HD 9" Quad Digital Wireless Monitor
Monitor Dimensions
| • 9" IPS HD IPS Screen Monitor with Non-Removable Sun Visor |
| • Built-in 2.4G digital wireless receiver |
| • View Monitor Screen: Quad / Three Way Split / Single screen / Split Dual Screen Display |
| • Operation Frequency Range: 2400 ~ 2483.5MHz |
| • Receiving Sensitivity：≤-86dBm(1MHZ QPSK MD300RE) |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) x 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Time Delay (ms):200ms |
| • Transmission Distance:200m (No Barriers) |
| • Wide view angle(LR/UD):(U/D): 85/85 (L/R): 85/85 |
| • Brightness (cd/m²): 600 |
| • Contrast ratio: 800:1 |
| • Monitor Current: DC9V: 530mA (± 30mA) ; DC32V: 150mA (± 30mA) |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC10~32V |
| • External dimensions :(L x W x T) (256 x 179 x 85mm)(Including Sun Visor and U-bracket ) |
| • Weight Approx: 1440g |
| • Two Year Warranty |
2.4G Digital Wireless 1080P HD Forklift Camera
Stainless Steel and Secure with the screws.
Built-in Internal Antenna
Camera Dimensions
Camera Cable Interface Definition
1080P HD Digital Wireless Forklift Camera (CHDDWFL52) |
| • Free viewing angle: 52° |
| • Waterproof: IP69K (100% waterproof) |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤100m |
| • TV System: PAL (25fps) |
| • Resolution: 1080P |
| • Effective pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 0.1Lux |
| • Night Vision Mode: IR-CUT Automatic Switching |
| • Shell material: 304 Stainless Steel, anti-collision design |
| • Free Operating Voltage: DC12Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 127(W) x 37(H) x 24.5(D) mm (without mounting) |
| • Operating Temperature: -30 To + 70℃ Rh95% Max |
| • Storage Temperature: -40℃ To + 70℃ Rh95% Max |
| • Weight : 700g |
| • One Year Warranty |
DC12V Mobile Power With Aluminium Alloy Housing IP67 Waterproof Stronger Magnetic Base Mount
3.5 hours Fully Charged Approx. 14 hours of power to operate one digital wireless camera if there is not any Camera IR light Usage. Approx. 7 Hours if the Camera is running on full IR Lights because there is no external light source.
Fast charge, input/output overvoltage protection, overcharge/discharge protection, input overcurrent protection, short circuit protection, reset protection, temperature protection, Light load protection, battery PTC(Positive Temperature Coefficient) protection.Supports QC fast charging from 5V to 12V. Over 500 Cycle Lifespan.
18650 Li-ion Cells DC12V Mobile Power (R-KDW12VPP26) |
| • Type Battery ：Li-ion battery (Panasonic 18650 Lithium-ion cell original import) |
| • Cell Capacity ：3300mAh / 11.1V 36Wh |
| • Cell Energy : 36.6Wh |
| • Rated Capacity ：2500mAh/ 12V 30Wh |
| • Type-C Input (support fast charge)：5(V)3A -9V/(2A) -12V(1.5A) |
| • Fast Charge Mode ：QC 2.0/3.0 Agreement 9V/2A, 12V/1.5A (USB adapter needs to carry own QC agreement) |
| • DC Iuput (DC5.5 *2.1) ：12V / 1A (12W Typ.) |
| • Charging Method ：Constant Current (CC) 2A (0.2C) to 4.2V cut-off charge ; Constant Voltage (CV) 4.2V 100mA to charge off; 5A (0.5C) Charging |
| • Maximum Input Power : 18V |
| • Input Current: 1.5A ± 10% |
| • Maximum Input Current : ≤2A |
| • Output Voltage: 12V ± 5% （Actual Output Range: 11.4~12.6V ± 5%) |
| • Output Current: 1.0A ±10%(Output Current Range: 0.06~1A) |
| • Conversion Efficiency: ≥85% |
| • Power Stability Accuracy: ≤10% |
| • Noise Level: ≤50dB |
| • Charging Overvoltage Protection (Cell): 12.6V |
| • Charging Overcurrent Protection (SW): 1.5A |
| • Discharging Undervoltage Protection (Cell): 8.4V |
| • Discharging Undervoltage Protection (SW): 9.3V |
| • Output Overcurrent Protection: ≥1.5A |
| • Charging times: > 500 cycles |
| • Charge Interface:Type-C |
| • Discharge Interface: DC 2.1 * 5.5 male |
| • Seismic Level: 5G |
| • Waterproof Level: IP67 |
| • Installation: With Strong Magnetic |
| • Charging Working Temperature: 0 ℃ to + 45℃ |
| • Discharge Working Temperature: -10℃ to + 50 ℃ |
| • Storage Temperature: -30 ℃ to + 60 ℃ |
| • Dimensions (mm): 108mm x 75mm x 29.5mm (without tails) |
| • Housing: Aluminium Alloy |
| • Installation: Magnetic Mounting (Built-in N52-D15H4 Strong Magnet) Front Pulling Force >25KG, Side Pulling Force >12KG |
| • Input Interface: Type-C |
| • Output Interface: DC5.5/2.1 Male |
| • Weight: 700g |
| • One Year Warranty |
Battery Dimensions: mm
| 4 High-Brightness Blue LED Indicators, Activated by Button Press |
| BATTERY CHARGING And DISCHARGING STATE |
| • 1 LED flashing, the battery power: 0~25% |
| • 2 LED On, 1 LED flashing, the battery power: 25~50% |
| • 3 LED On, 1 LED flashing, the battery power: 50~75% |
| • 4 LDE on, 1 LDE flashing, the battery power is 75~99% |
| • 4 LDE on, the battery power is 100% |
| • The battery charging time is approx.2~4 Hours |
| • Using a DC12V/2A USB charger will take approx. 2 Hours |
| • One Illuminated Green LED : Working Condition |
| • First Blue LED Flashing : Low Voltage Warning ( when voltage drops below 9.5V) |
| • Heat Dissipation Method: Natural Air Cooling |
| • Relative Humidity: 10%~90% |
