This 9 inch wireless forklift camera system with laser guidance is designed for industrial environments across Australia, improving safety, visibility, and operational control. The HD digital monitor provides a clear, high-resolution image, helping operators reduce blind spots and work safely in busy worksites.

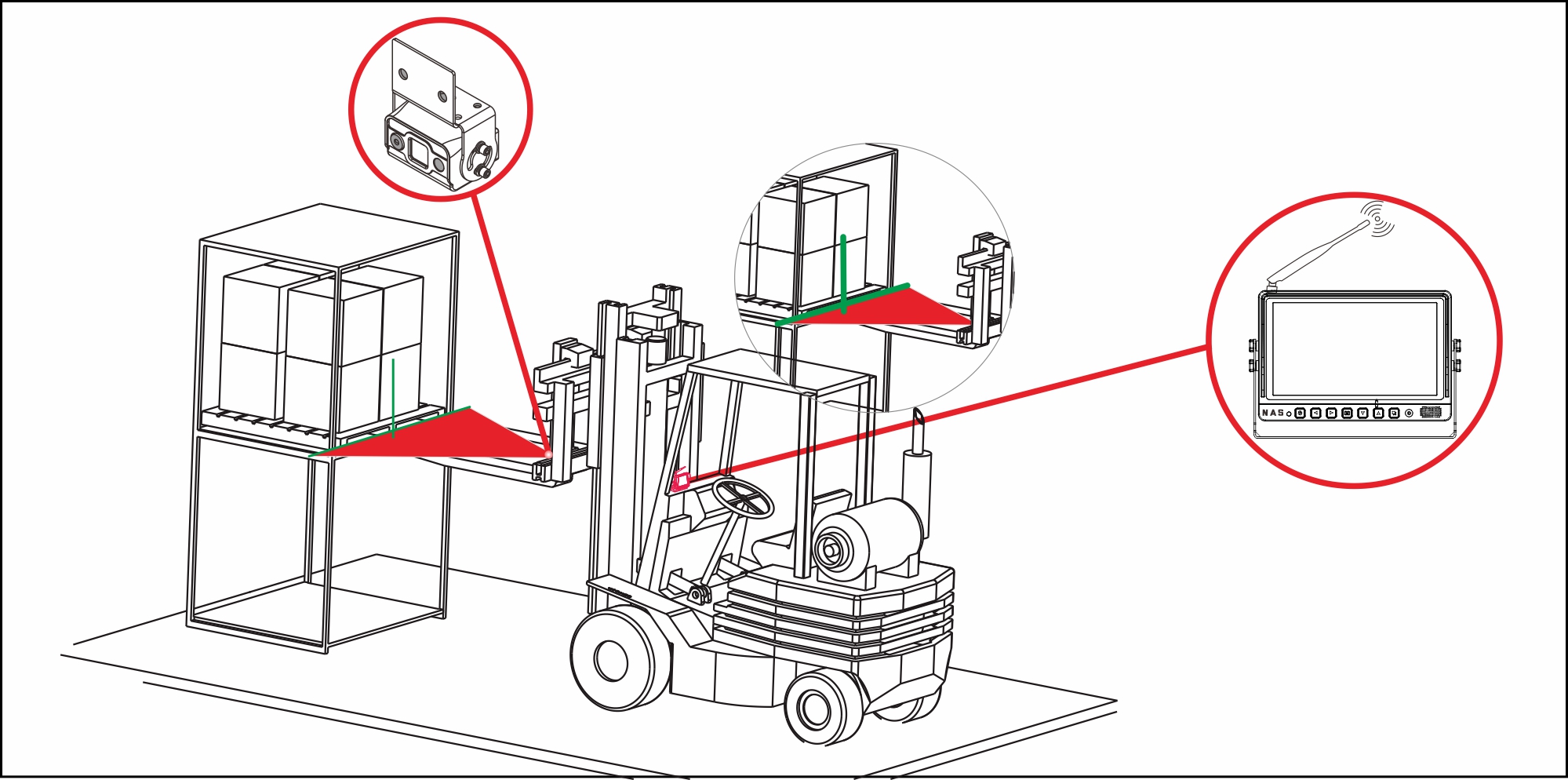

The integrated laser beam assists with accurate fork alignment, improving load handling and reducing the risk of product damage. This makes it ideal for high-demand warehouse and logistics operations where precision is critical.
The digital wireless connection ensures a stable, interference-free signal without the need for complex wiring. With quad view capability supporting up to four cameras, operators gain full visibility around the forklift for safer operation.
Built with durable, industrial grade construction, this system is suited for warehouses, transport yards, and heavy-duty applications where reliability and performance are essential.
9inch HD Digital Wireless Monitor Supports Four Reversing Cameras
A Live Image of a Forklift Camera Showing the Clarity

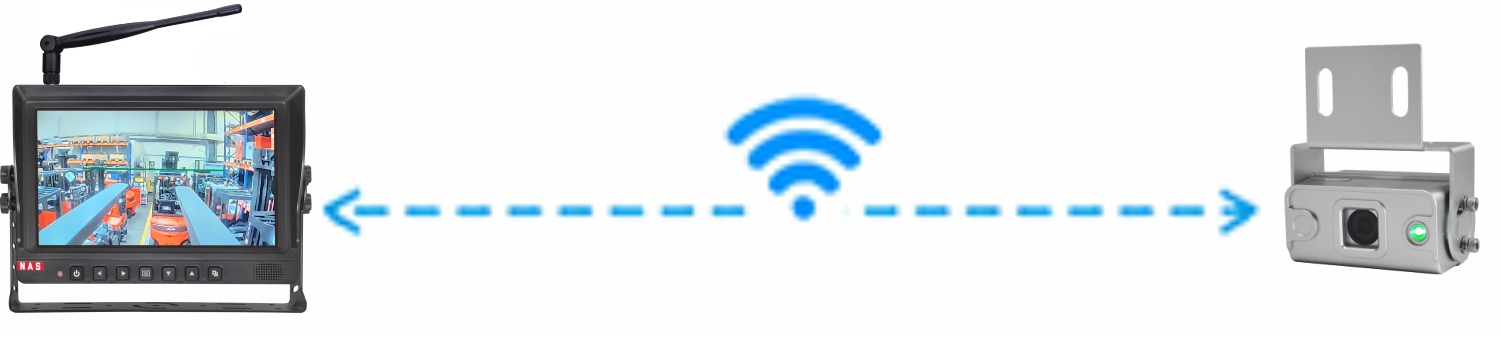

Wireless Range Up to 100 Metres
The digital wireless system provides a stable, interference-resistant signal at distances of up to 100 metres in clear line-of-sight conditions. Obstacles in the way of the wireless signal will reduce the wireless distance slightly.
Monitor Viewing Configurations
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Waterproof IP69K Forklift Camera HD1080P with Laser light 80° Viewing Angle
Aluminum Alloy Built-in Internal Antenna
DC12V Mobile Battery Packs with Aluminum Alloy Housing IP67 Waterproof Stronger Magnetic Bases for Powering Cameras
12V mobile battery packs with magnetic bases, designed for powering wireless reversing cameras without the need for wiring. These portable battery packs make the cameras completely mobile, offering unmatched flexibility for use in locations without access to a power source. Ideal for trucks, caravans, and industrial setups, the strong magnetic base ensures secure attachment. A perfect solution for on-the-go applications and versatile camera placement.
KDW12VPP26 Approx.14 Hours No IR Usage
A 12V mobile battery pack can be purchased as an optional extra by clicking on the drop down box labelled "Battery - Is a Battery Pack Required" .
Power
To power the monitors and cameras effectively, a power supply within the range of 12 to 32 volts is required, with an absolute minimum of 12 volts (12V) as a constant. A reliable guideline to keep in mind is that a blue screen on the monitor indicates insufficient constant power, while a black screen signals a lack of constant power to the cameras.
The trigger wires on the monitor harness do not need to be connected unless you want a camera to activate automatically, such as when the vehicle is put into reverse. If the trigger wire is connected, you will not be able to view the camera continuously while driving. If you choose not to connect the trigger wires, wrap each one individually with insulation tape.
Digital Wireless Extension Antenna 5dBi Signal Boost, 3-meter cable that screws onto the monitor, offering the flexibility to extend the antenna (ADWC).
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
Secure Twist Lock Camera and Power cable Connections
Ensure that the twist lock connection is fitted with the rubber cover and positioned securely over the junction. Additionally, it is advisable, if these connections are expected to be exposed to the elements, to wrap them with insulation tape to prevent water ingress.
9" Digital Wireless Quad Monitor Camera Kit (HDKDWQ9CFLAS80- Concord) |
| • Wireless Range up to 100m Clear Line of Sight with the Forklift Camera |
| • The monitor can be viewed in Single, Split, three camera split or quad display mode. |
| • Wireless eliminates running cables through machinery. |
| • Power ~ Monitor DC12-32V, Camera DC12V |
| • Suitable for 12V and 24V Trucks, Heavy Equipment Mining and Farming Machinery |
| • The equipment is tough and is made specifically for farming, industrial and mining machinery. |
| Kit Includes |
| • 1 x HDKDWWPQ9 High Quality 9" HD IPS Screen Digital Wireless Monitor |
| • 1 x CHDDWFLAS80 Wireless 1/2.9 inch CMOS High Resolution 1080P IR CUT Reversing Camera |
| • 1 x Antenna (1 for Monitor) |
| • Camera Emissive Power 18dBm |
| • Electrical Connecting Cables |
| • U-Support Bracket (other bracket styles are suitable too) |
| • Manual |
| • Monitor Two Year Warranty, Camera One Year Warranty |
Images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image pro
HD 9" Quad Digital Wireless Monitor
Monitor Dimensions
| • 9" IPS HD IPS Screen Monitor with Non-Removable Sun Visor |
| • Built-in 2.4G digital wireless receiver |
| • View Monitor Screen: Quad / Three Way Split / Single screen / Split Dual Screen Display |
| • Operation Frequency Range: 2400 ~ 2483.5MHz |
| • Receiving Sensitivity：≤-86dBm(1MHZ QPSK MD300RE) |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) x 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Time Delay (ms):200ms |
| • Transmission Distance:200m (No Barriers) |
| • Wide view angle(LR/UD):(U/D): 85/85 (L/R): 85/85 |
| • Brightness (cd/m²): 600 |
| • Contrast ratio: 800:1 |
| • Monitor Current: DC9V: 530mA (± 30mA) ; DC32V: 150mA (± 30mA) |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC10~32V |
| • External dimensions :(L x W x T) (256 x 179 x 85mm)(Including Sun Visor and U-bracket ) |
| • Weight Approx: 1440g |
| • Two Year Warranty |
2.4G Digital Wireless 1080P HD Forklift Camera Aluminum Alloy Built-in Internal Antenna
Camera Dimensions
Camera Cable Interface Definition
1080P HD Digital Wireless Forklift Camera Built-in Internal Antenna (CHDDWFLAS80) |
| • Free viewing angle: 80° |
| • Waterproof: IP69K (100% waterproof) |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤100m |
| • TV System: PAL (25fps) |
| • Resolution: 1080P |
| • Effective Pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 1Lux |
| • Laser Function: Green Laser Beam |
| • Shell material: Aluminum Alloy, anti-collision design |
| • Free Operating Voltage: DC12Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 88.5(W) x 52.5(H) x 109(D) mm (without mounting) |
| • Operating Temperature: -30℃ To + 70℃ Rh95% Max |
| • Storage Temperature: -40℃ To + 70℃ Rh95% Max |
| • Weight : 500g |
| • One Year Warranty |
DC12V Mobile Power With Aluminium Alloy Housing IP67 Waterproof Stronger Magnetic Base Mount
3.5 hours Fully Charged Approx. 14 hours of power to operate one digital wireless camera if there is not any Camera IR light Usage. Approx. 7 Hours if the Camera is running on full IR Lights because there is no external light source.
Fast charge, input/output overvoltage protection, overcharge/discharge protection, input overcurrent protection, short circuit protection, reset protection, temperature protection, Light load protection, battery PTC(Positive Temperature Coefficient) protection.Supports QC fast charging from 5V to 12V. Over 500 Cycle Lifespan.
18650 Li-ion Cells DC12V Mobile Power (R-KDW12VPP26) |
| • Type Battery ：Li-ion battery (Panasonic 18650 Lithium-ion cell original import) |
| • Cell Capacity ：3300mAh / 11.1V 36Wh |
| • Cell Energy : 36.6Wh |
| • Rated Capacity ：2500mAh/ 12V 30Wh |
| • Type-C Input (support fast charge)：5(V)3A -9V/(2A) -12V(1.5A) |
| • Fast Charge Mode ：QC 2.0/3.0 Agreement 9V/2A, 12V/1.5A (USB adapter needs to carry own QC agreement) |
| • DC Iuput (DC5.5 *2.1) ：12V / 1A (12W Typ.) |
| • Charging Method ：Constant Current (CC) 2A (0.2C) to 4.2V cut-off charge ; Constant Voltage (CV) 4.2V 100mA to charge off; 5A (0.5C) Charging |
| • Maximum Input Power : 18V |
| • Input Current: 1.5A ± 10% |
| • Maximum Input Current : ≤2A |
| • Output Voltage: 12V ± 5% （Actual Output Range: 11.4~12.6V ± 5%) |
| • Output Current: 1.0A ±10%(Output Current Range: 0.06~1A) |
| • Conversion Efficiency: ≥85% |
| • Power Stability Accuracy: ≤10% |
| • Noise Level: ≤50dB |
| • Charging Overvoltage Protection (Cell): 12.6V |
| • Charging Overcurrent Protection (SW): 1.5A |
| • Discharging Undervoltage Protection (Cell): 8.4V |
| • Discharging Undervoltage Protection (SW): 9.3V |
| • Output Overcurrent Protection: ≥1.5A |
| • Charging times: > 500 cycles |
| • Charge Interface:Type-C |
| • Discharge Interface: DC 2.1 * 5.5 male |
| • Seismic Level: 5G |
| • Waterproof Level: IP67 |
| • Installation: With Strong Magnetic |
| • Charging Working Temperature: 0 ℃ to + 45℃ |
| • Discharge Working Temperature: -10℃ to + 50 ℃ |
| • Storage Temperature: -30 ℃ to + 60 ℃ |
| • Dimensions (mm): 108mm x 75mm x 29.5mm (without tails) |
| • Housing: Aluminium Alloy |
| • Installation: Magnetic Mounting (Built-in N52-D15H4 Strong Magnet) Front Pulling Force >25KG, Side Pulling Force >12KG |
| • Input Interface: Type-C |
| • Output Interface: DC5.5/2.1 Male |
| • Weight: 700g |
| • One Year Warranty |
Battery Dimensions: mm
| 4 High-Brightness Blue LED Indicators, Activated by Button Press |
| BATTERY CHARGING And DISCHARGING STATE |
| • 1 LED flashing, the battery power: 0~25% |
| • 2 LED On, 1 LED flashing, the battery power: 25~50% |
| • 3 LED On, 1 LED flashing, the battery power: 50~75% |
| • 4 LDE on, 1 LDE flashing, the battery power is 75~99% |
| • 4 LDE on, the battery power is 100% |
| • The battery charging time is approx.2~4 Hours |
| • Using a DC12V/2A USB charger will take approx. 2 Hours |
| • One Illuminated Green LED : Working Condition |
| • First Blue LED Flashing : Low Voltage Warning ( when voltage drops below 9.5V) |
| • Heat Dissipation Method: Natural Air Cooling |
| • Relative Humidity: 10%~90% |
