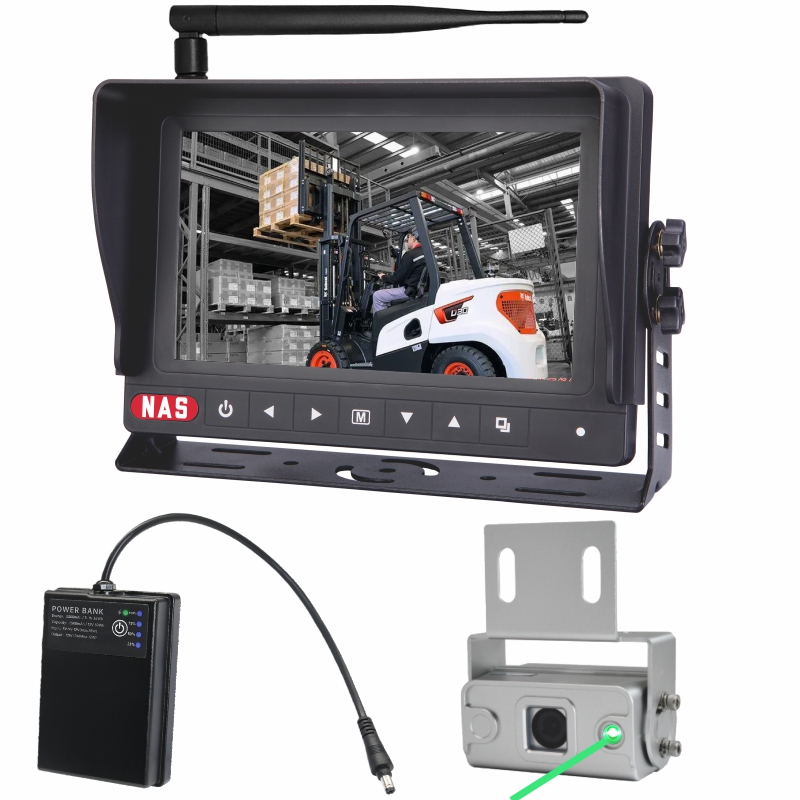

This 7 inch wireless forklift camera system combines clear visibility with laser guidance for more accurate fork alignment and load handling. The 80° camera helps reduce blind spots, product damage and operating errors.
The digital wireless connection simplifies installation, while the monitor supports up to four cameras for additional coverage. Built for warehouses, logistics and industrial applications, the system is designed for reliable performance in demanding environments.
Key Features
- 7 inch HD IPS digital wireless monitor
- 1080P forklift camera with green laser guidance
- 80° viewing angle for fork alignment
- Supports up to four cameras
- Single, split and quad-screen viewing
- Wireless range up to 100 metres in clear line-of-sight conditions
- IP69K-rated anti-collision camera
- Monitor operates from 10–32V
- Camera operates from 12V
- Optional rechargeable magnetic battery pack
- Two-year monitor warranty and one-year camera warranty
7inch HD Digital Wireless Monitor Supports Four Cameras
A Live Image of a Forklift Camera Showing the Clarity

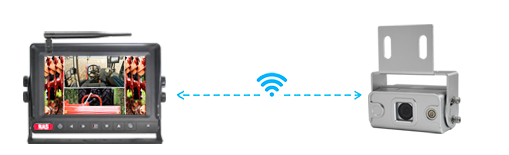

Wireless Range Up to 100 Metres
The digital wireless system provides a stable, interference-resistant signal at distances of up to 100 metres in clear line-of-sight conditions. Obstacles in the way of the wireless signal will reduce the wireless distance slightly.
Monitor Viewing Configurations
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket, a fan bracket or a butterfly bracket can be purchased as an optional extra by clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Waterproof IP69K Forklift Camera
This forklift camera features HD 1080P resolution, an 80° viewing angle, a built-in laser light, an aluminum alloy housing, and an internal antenna.
DC12V Mobile Battery Pack
This 12V portable battery pack powers wireless reversing cameras without wiring. Featuring an IP67 waterproof aluminum housing and a strong magnetic base, it ensures secure, flexible camera placement for trucks, caravans, and industrial use.
KDW12VPP26 Approx.14 Hours No IR Usage
A 12V mobile battery pack can be purchased as an optional extra by clicking on the drop down box labelled "Battery - Is a Battery Pack Required" .
Power
To power the monitors and cameras effectively, a power supply within the range of 12 to 32 volts is required, with an absolute minimum of 12 volts (12V) as a constant. A reliable guideline to keep in mind is that a blue screen on the monitor indicates insufficient constant power, while a black screen signals a lack of constant power to the cameras.
The trigger wires on the monitor harness do not need to be connected unless you want a camera to activate automatically, such as when the vehicle is put into reverse. If the trigger wire is connected, you will not be able to view the camera continuously while driving. If you choose not to connect the trigger wires, wrap each one individually with insulation tape.
Digital Wireless Extension Antenna (ADWC).
5dBi Signal Boost, 3-meter cable that screws onto a camera or monitor, offering the flexibility to extend the antenna.
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
Secure Twist Lock Camera & Power cable Connections
Ensure that the twist lock connection is fitted with the rubber cover and positioned securely over the junction. Additionally, it is advisable, if these connections are expected to be exposed to the elements, to wrap them with insulation tape to prevent water ingress.
7" Digital Wireless Quad Monitor Camera Kit (HDKDWQ7CFLAS80 - Concord) |
| • Wireless Range up to 100m Clear Line of Sight with the Forklift Camera |
| • The monitor can be viewed in Single, Split, three camera split or quad display mode. |
| • Wireless eliminates running cables through machinery. |
| • Power ~ Monitor DC12-32V, Camera DC12V |
| • Suitable for 12V and 24V Trucks, Heavy Equipment Mining and Farming Machinery |
| • The equipment is tough and is made specifically for farming, industrial and mining machinery. |
| Kit Includes |
| • 1 x HDKDWQ7 High Quality 7" HD IPS Screen Touch Buttons Digital Wireless Reverse Monitor |
| • 1 x CHDDWFLAS80 Wireless 1/2.9 inch CMOS High Resolution 1080P IR CUT Reversing Camera |
| • 1 x Antenna (1 for Monitor) |
| • Camera Emissive Power 18dBm |
| • Electrical Connecting Cables |
| • U-Support Bracket (other bracket styles are suitable too) |
| • Manual |
| • Monitor Two Year Warranty, Camera One Year Warranty |
Images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image pro
HD 7" Quad Digital Wireless Monitor With Touch Buttons (HDKDWQ7)
Monitor Dimensions
Monitor Key

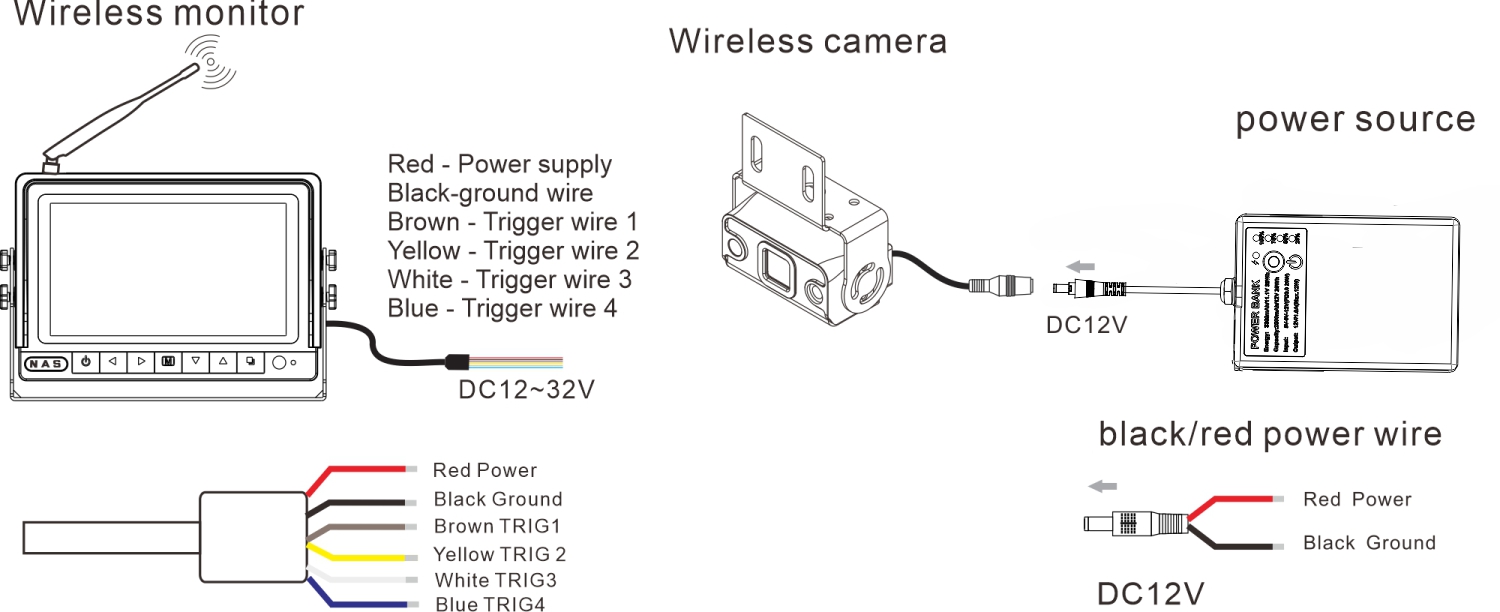

Monitor harnesses have trigger cables that are typically White, Brown, Yellow, Green, and/or Blue. These don't need to be connected unless you want a camera to activate automatically, like when the vehicle shifts into reverse. Connecting the trigger wires means you won't be able to view the camera constantly while driving. If you choose not to connect them, wrap each trigger cable individually in insulation tape.
| • 7" IPS HD Screen Monitor with Removable Sun Visor and Touch Buttons |
| • Built-in 2.4G digital wireless receiver |
| • View Monitor Screen: Quad / Three Way Split / Single screen / Split Dual Screen Display |
| • Operation Frequency Range: 2400 ~ 2483.5MHz |
| • Receiving Sensitivity：≤-86dBm(1MHZ QPSK MD300RE) |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) x 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Time Delay (ms): 200ms |
| • Transmission Distance: 200m (No Barriers) |
| • Wide View Angle (LR/UD) : (U/D) : 85/85 (L/R) : 85/85 |
| • Brightness (cd/m²): 600 |
| • Monitor Current: DC9V: 530mA (± 30mA) ; DC32V: 150mA (± 30mA) |
| • Contrast ratio: 800:1 |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC10~32V (5W Max) |
| • External dimensions :(L x W x T) (220 x 149 x 84mm)(Including Sun Visor and U-bracket ) |
| • Weight Approx: 1020g |
| • Two Year Warranty |
2.4G Digital Wireless 1080P HD Forklift Camera Aluminum Alloy Built-in Internal Antenna
Camera Dimensions
Camera Cable Interface Definition
1080P HD Digital Wireless Forklift Camera Built-in Internal Antenna (CHDDWFLAS80) |
| • Free viewing angle: 80° |
| • Waterproof: IP69K (100% waterproof) |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤100m |
| • TV System: PAL (25fps) |
| • Resolution: 1080P |
| • Effective Pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 1Lux |
| • Laser Function: Green Laser Beam |
| • Shell material: Aluminum Alloy, anti-collision design |
| • Free Operating Voltage: DC12Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 88.5(W) x 52.5(H) x 109(D) mm (without mounting) |
| • Operating Temperature: -30℃ To + 70℃ Rh95% Max |
| • Storage Temperature: -40℃ To + 70℃ Rh95% Max |
| • Weight : 500g |
| • One Year Warranty |
DC12V Mobile Power With Aluminium Alloy Housing IP67 Waterproof Stronger Magnetic Base Mount
3.5 hours Fully Charged Approx. 14 hours of power to operate one digital wireless camera if there is not any Camera IR light Usage. Approx. 7 Hours if the Camera is running on full IR Lights because there is no external light source.
Fast charge, input/output overvoltage protection, overcharge/discharge protection, input overcurrent protection, short circuit protection, reset protection, temperature protection, Light load protection, battery PTC(Positive Temperature Coefficient) protection.Supports QC fast charging from 5V to 12V. Over 500 Cycle Lifespan.
18650 Li-ion Cells DC12V Mobile Power (R-KDW12VPP26) |
| • Type Battery ：Li-ion battery (Panasonic 18650 Lithium-ion cell original import) |
| • Cell Capacity ：3300mAh / 11.1V 36Wh |
| • Cell Energy : 36.6Wh |
| • Rated Capacity ：2500mAh/ 12V 30Wh |
| • Type-C Input (support fast charge)：5(V)3A -9V/(2A) -12V(1.5A) |
| • Fast Charge Mode ：QC 2.0/3.0 Agreement 9V/2A, 12V/1.5A (USB adapter needs to carry own QC agreement) |
| • DC Iuput (DC5.5 *2.1) ：12V / 1A (12W Typ.) |
| • Charging Method ：Constant Current (CC) 2A (0.2C) to 4.2V cut-off charge ; Constant Voltage (CV) 4.2V 100mA to charge off; 5A (0.5C) Charging |
| • Maximum Input Power : 18V |
| • Input Current: 1.5A ± 10% |
| • Maximum Input Current : ≤2A |
| • Output Voltage: 12V ± 5% （Actual Output Range: 11.4~12.6V ± 5%) |
| • Output Current: 1.0A ±10%(Output Current Range: 0.06~1A) |
| • Conversion Efficiency: ≥85% |
| • Power Stability Accuracy: ≤10% |
| • Noise Level: ≤50dB |
| • Charging Overvoltage Protection (Cell): 12.6V |
| • Charging Overcurrent Protection (SW): 1.5A |
| • Discharging Undervoltage Protection (Cell): 8.4V |
| • Discharging Undervoltage Protection (SW): 9.3V |
| • Output Overcurrent Protection: ≥1.5A |
| • Charging times: > 500 cycles |
| • Charge Interface:Type-C |
| • Discharge Interface: DC 2.1 * 5.5 male |
| • Seismic Level: 5G |
| • Waterproof Level: IP67 |
| • Installation: With Strong Magnetic |
| • Charging Working Temperature: 0 ℃ to + 45℃ |
| • Discharge Working Temperature: -10℃ to + 50 ℃ |
| • Storage Temperature: -30 ℃ to + 60 ℃ |
| • Dimensions (mm): 108mm x 75mm x 29.5mm (without tails) |
| • Housing: Aluminium Alloy |
| • Installation: Magnetic Mounting (Built-in N52-D15H4 Strong Magnet) Front Pulling Force >25KG, Side Pulling Force >12KG |
| • Input Interface: Type-C |
| • Output Interface: DC5.5/2.1 Male |
| • Weight: 700g |
| • One Year Warranty |
Battery Dimensions: mm
| 4 High-Brightness Blue LED Indicators, Activated by Button Press |
| BATTERY CHARGING And DISCHARGING STATE |
| • 1 LED flashing, the battery power: 0~25% |
| • 2 LED On, 1 LED flashing, the battery power: 25~50% |
| • 3 LED On, 1 LED flashing, the battery power: 50~75% |
| • 4 LDE on, 1 LDE flashing, the battery power is 75~99% |
| • 4 LDE on, the battery power is 100% |
| • The battery charging time is approx.2~4 Hours |
| • Using a DC12V/2A USB charger will take approx. 2 Hours |
| • One Illuminated Green LED : Working Condition |
| • First Blue LED Flashing : Low Voltage Warning ( when voltage drops below 9.5V) |
| • Heat Dissipation Method: Natural Air Cooling |
| • Relative Humidity: 10%~90% |
