This 7 inch wireless reversing camera kit includes two HD 1080P cameras and a fully laminated touchscreen monitor for clear, real-time visibility. Designed for trucks, mining and commercial vehicles, it reduces blind spots and delivers reliable performance in Australian conditions.
Key Features:
- 7 inch HD fully laminated touchscreen monitor
- Built-in DVR recording and playback
- 2 x 1080P wireless camera
- Optional 100°, 60° or 35° viewing angles
- Wireless transmission up to 200 metres
- Supports up to 4 cameras
- Single, dual, three-camera and quad viewing
- Supports micro-SD cards from 16GB to 512GB
- Reduces blind spots and improves safety
- Simple installation with 12V to 24V power
- Built for industrial and heavy duty use

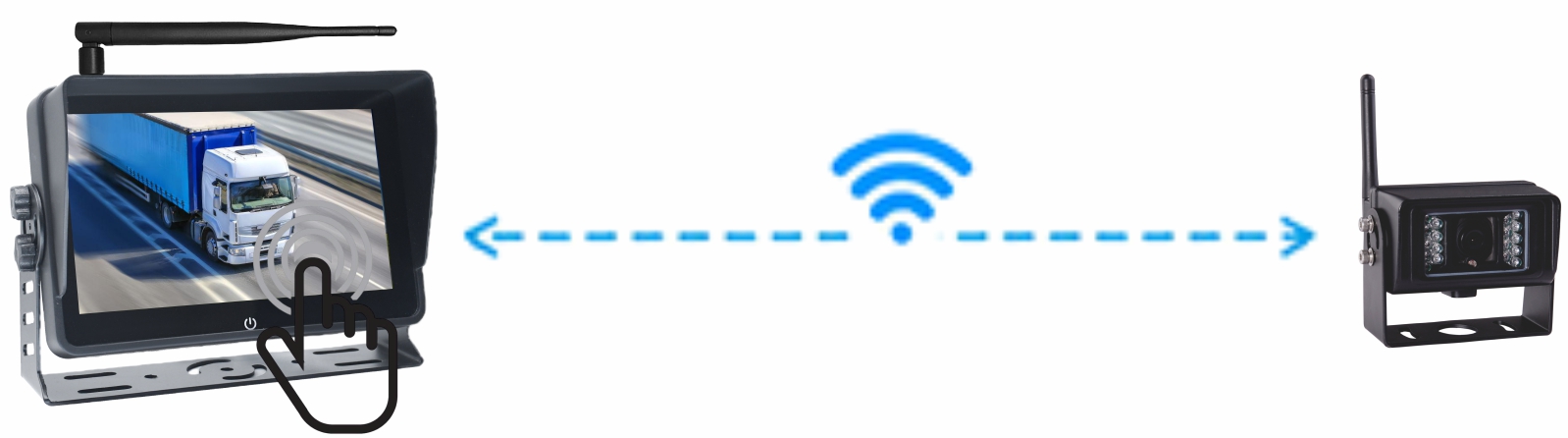

Wireless Range Up to 200 Metres
The digital wireless system provides a stable, interference-resistant signal at distances of up to 200 metres in clear line-of-sight conditions. Obstacles in the way of the wireless signal will reduce the wireless distance slightly.

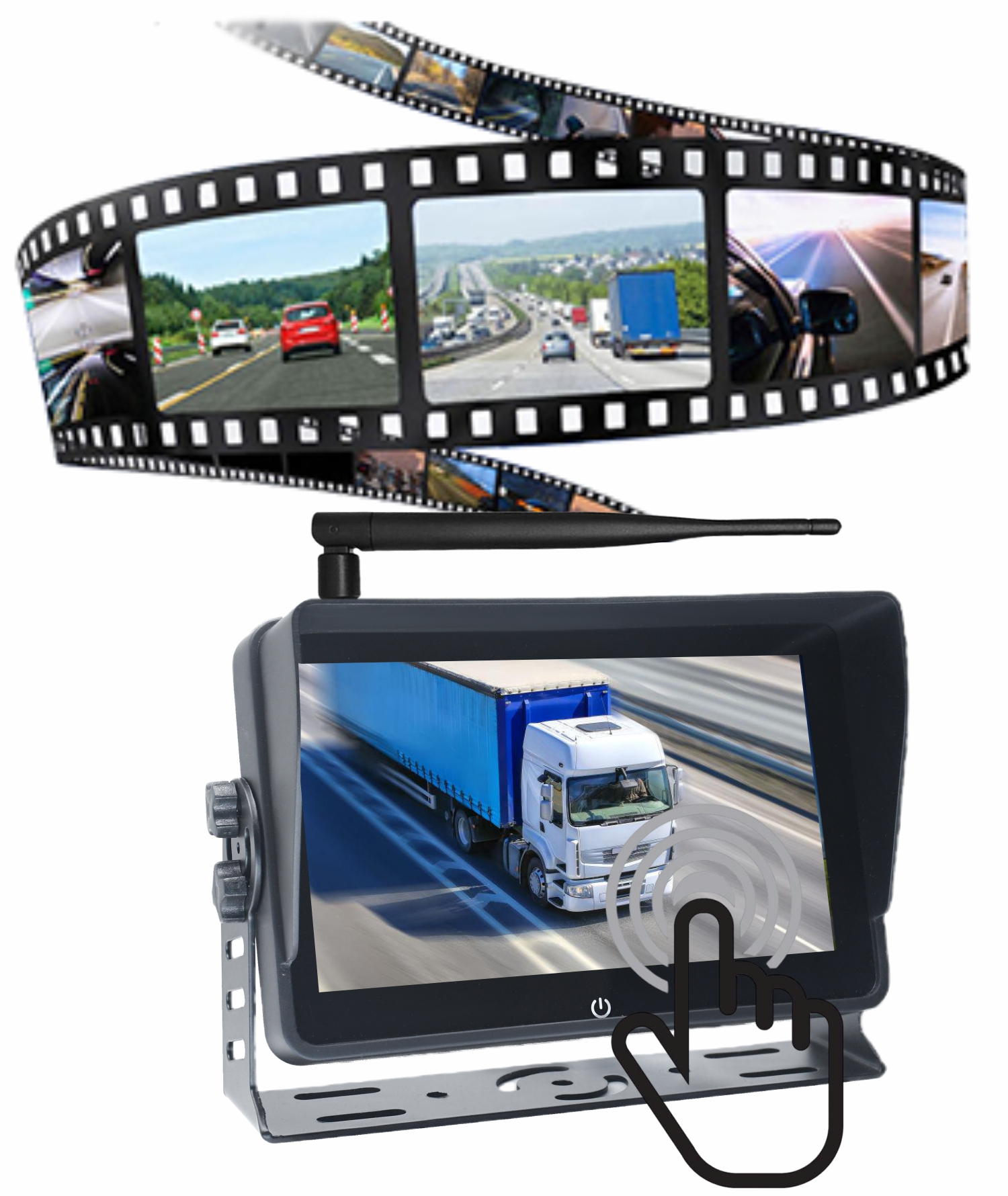

Supports Looped Recording
The monitor supports a micro-SD cards up to 512GB. They require a speed equal to or greater than U3/V30. SD card is not included.
Recording time & Data Size
Monitor Viewing Configuration:
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
A suction bracket，a fan bracket or a fan bracket can be purchased as an optional extra by Clicking on the "Monitor Bracket" Tab.
Suction or Fan Bracket Slides into Slot.
Waterproof Reversing Camera HD IP69K
Camera Angles - 100°，60° and 35° optional
Power
To power the monitors and cameras effectively, a power supply within the range of 12 to 32 volts is required, with an absolute minimum of 12 volts (12V) as a constant. A reliable guideline to keep in mind is that a blue screen on the monitor indicates insufficient constant power, while a black screen signals a lack of constant power to the cameras.
While it's common practice to draw power for the cameras from the vehicle's tail lights, it's important to note that some modern European trucks and other European vehicles often provide less than 12 volts through the taillights. This voltage level is insufficient to ensure proper camera operation. For those involved in constructing new trailers or retrofitting vehicles, it is strongly recommended to install a dedicated power wire for the camera systems. This separate power source guarantees a steady and ample supply of 12V, ensuring the cameras operate consistently and reliably.
DC12V Mobile Battery Pack
This 12V portable battery pack powers wireless reversing cameras without wiring. Featuring an IP67 waterproof aluminum housing and a strong magnetic base, it ensures secure, flexible camera placement for trucks, caravans, and industrial use.
KDW12VPP26 Approx.14 Hours No IR Usage
A 12V mobile battery pack can be purchased as an optional extra by clicking on the drop down box labelled "Battery - Is a Battery Pack Required" .
Digital Wireless Extension Antenna (ADWC).
5dBi Signal Boost, 3-meter cable that screws onto a camera or monitor, offering the flexibility to extend the antenna.
The antenna base is equipped with a magnetic base, although additional adhesive may be required for secure placement.
3m Extension Cable
Connects to the Above Extension Antennas ADWC.
Extension cable can be connected to the Digital Wireless Cabled Extension Antenna – 5dBi (R-ADWC) giving an overall length of 6m.
14dBi Wireless Directional Panel Antenna (A14dBi）
High Gain Long Range
Antennas cable length - 5M
Boost the reach of your digital wireless kits using this high-grain, long-range antenna. If your monitor suffers from reception loss, this antenna markedly reinforces the signal. Farmers trust it to counter signal loss caused by grain dust, and it's equally valuable on road trains for increased signal strength. Optimal placement is on the back of the truck cab, making it versatile for various applications experiencing signal loss.
5m Extension Cable (EXT5mA14dBi)
For 14dBi Panel Antenna
5m Extension Cable that Connects to the Above 14dBi Panel Antenna providing an overall length of 10m. Excess cable can be rolled up.
Camera Magnetic Base
Can Be Mounted on a Magnetic Base for Ease of Fixing and Movability. The Magnet has a Very Strong Magnetic Hold.
A magnetic base can be purchased as an optional extra by clicking on the "Add Accessories" Tab
Secure Twist Lock Camera and Power cable Connections
Ensure that the twist lock connection is fitted with the rubber cover and positioned securely over the junction. Additionally, it is advisable, if these connections are expected to be exposed to the elements, to wrap them with insulation tape to prevent water ingress.

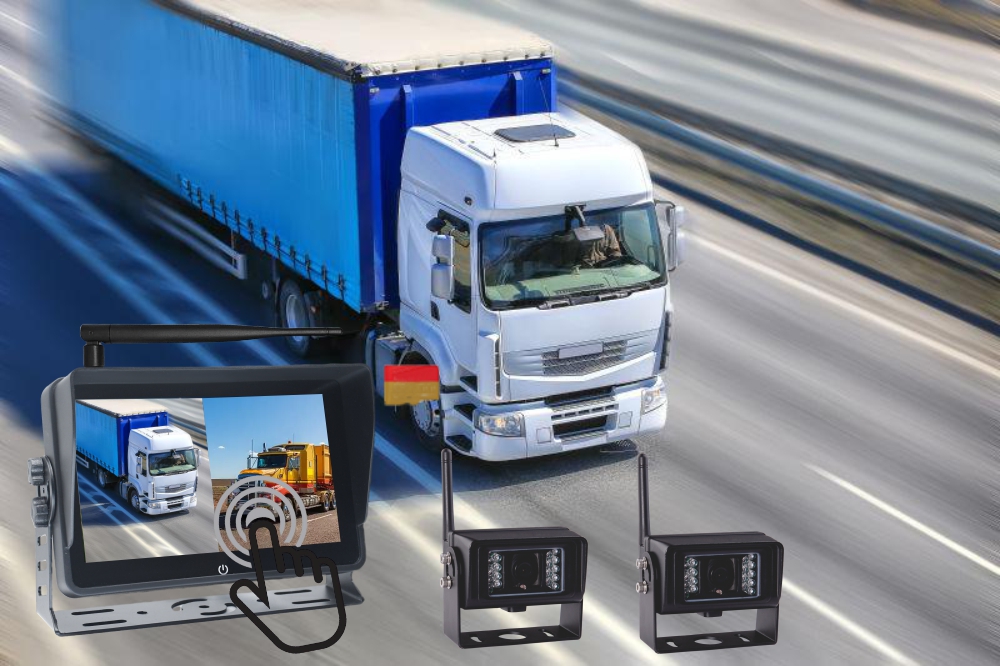

7" Digital Wireless Touch Screen Quad Monitor Camera Kit (HDKDWQ7TRec402- Concord) |
| • Wireless Range up to 200m Clear Line of Sight |
| • The monitor can be viewed in Single, Split, three camera split or quad display mode. |
| • Wireless eliminates running cables through machinery. |
| • Power ~ Monitor and Cameras DC12-32V |
| • Suitable for 12V and 24V Trucks and Farming Machinery |
| • The equipment is tough and is made specifically for farming, industrial and mining machinery. |

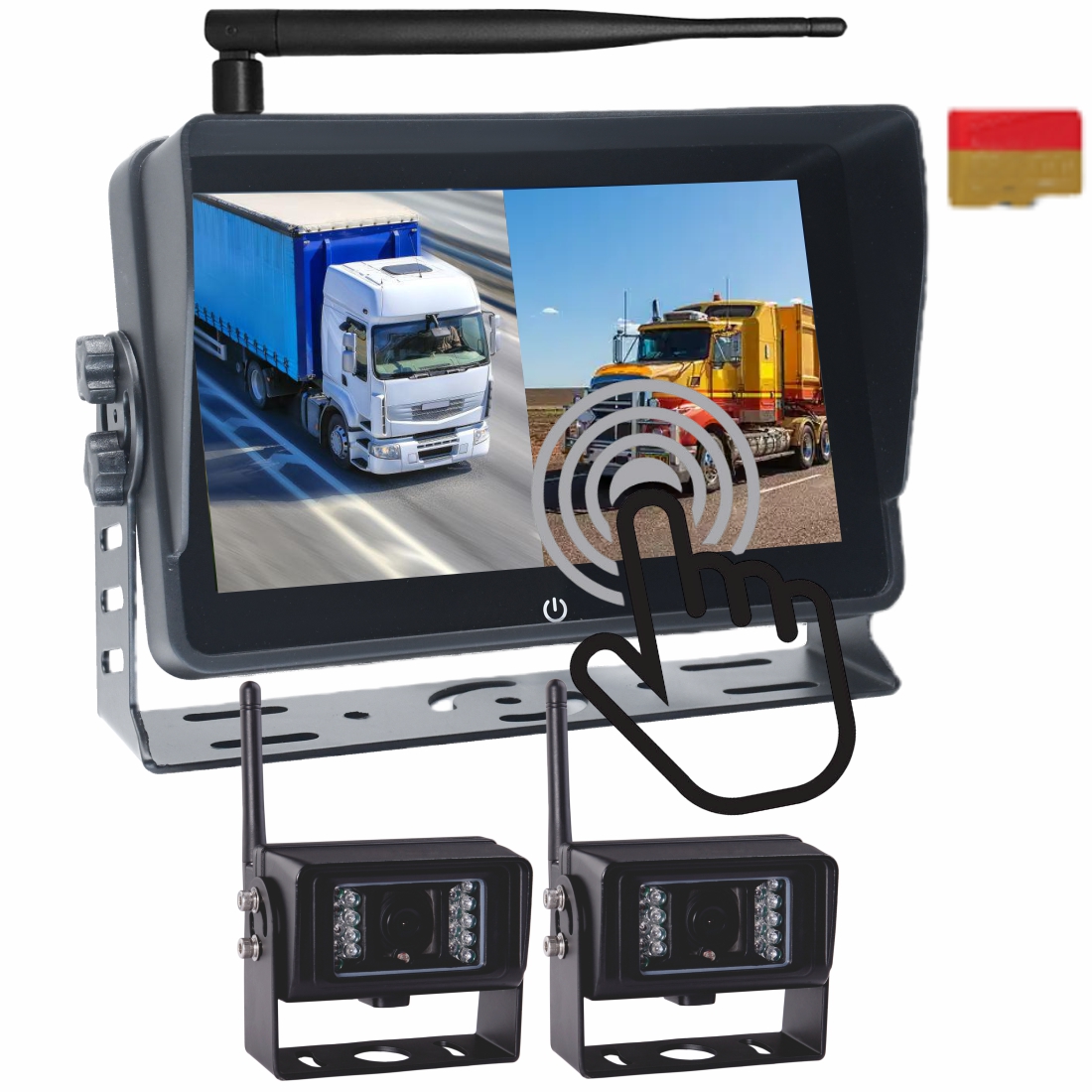

| Kit Includes |
| • 1 x HDKDWQ7TRec HD 7" IPS Fully Laminated Touch Screen Quad Digital Wireless Reverse Monitor Built-in DVR (SD Card Not Included) |
| • 2 x HDKDW04 Wireless 1/2.9 inch CMOS High Resolution 1080P IR CUT Reversing Cameras |
| •3 x Antennas (1 for Monitor & 2 for Cameras) |
| • Electrical Connecting Cables |
| • U-Support Bracket (other bracket styles are suitable too) |
| • Manual |
| • Monitor Two Year Warranty, Cameras One Year Warranty |
| • Monitor Supports Four Cameras, Additional Cameras can be Added in the Future |
Images displayed on the monitors in any media form are for presentation purposes only and may or may not be a true reflection of the image pro
HD 7" Quad Digital Wireless Monitor With Fully Laminated Touch Screen (HDKDWQ7TRec)
TF Card Not Included.
Monitor Viewing Configuration:
Monitor Dimensions
Recording time & Data Size
Mounting Bracket
The monitor comes with the U-Shaped Bracket
Other Mounting Bracket Options
| • 7" IPS Full Laminate HD Touch Screen Monitor with Removable Sun Visor |
| • Built-in 2.4G digital wireless receiver |
| • View Monitor Screen: Quad / Three Way Split / Single screen / Split Dual Screen Display |
| • Operation Frequency Range: 2400 ~ 2483.5MHz |
| • Receiving Sensitivity: ≤-86DB |
| • Colour System: PAL/NTSC (Auto) |
| • Display Resolution: 1024(H) x 600(V) |
| • Surge and load dump protection: ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| • Response Time: 25ms |
| • Transmission Distance: 200m (No Barriers) |
| • Wide View Angle (LR/UD) : (U/D) : 85/85 (L/R) : 85/85 |
| • Brightness (cd/m²): 600 |
| • Monitor Current: DC9V: 530mA (± 30mA) ; DC32V: 150mA (± 30mA) |
| • Contrast ratio: 800:1 |
| • Video Recording Function: Real-time Recording (2GB per Channel per hour) |
| • Video File Format: AVI |
| • Video Recording Capacity: Supports 16~512GB TF Cards |
| • Load Dump: DC 24 +174V / 350ms |
| • Connector Socket: 18-Pin Waterproof Interface |
| • Vibration Resistance: GB/T 2423.56-2023 Standard (Random 5G Vibration) |
| • External Power Supply Polarity Reversal Protection |
| • Operating temperature: -20℃ to +70℃ |
| • Storage temperature: -30℃ to +80℃ |
| • Power Supply: DC11~32V |
| • External dimensions :(L x W x T) (265 x 168 x 37mm)(Without Sun Visor and U-bracket ) |
| • Weight Approx: 2000g |
| • Two Year Warranty |
HD 1080P Digital Wireless Camera
Camera Angles - 100°，60° and 35° optional. Default: 100°
Camera Dimensions
1080P HD Digital Wireless Camera (HDKDW04) |
| • Free viewing angle: 100°,60 and 35° optional |
| • Waterproof: IP69K |
| • Image Type: 1/2.9 inch Colour CMOS |
| • Built in 2.4GHz Digital wireless transmitter |
| • Transmission Power: 18dBm |
| • Wireless Range: No Barriers ≤200m |
| • IR-function: Automatic switching |
| • Resolution: 1080P |
| • Effective pixels: PAL 1920(H)*1080(V) |
| • Usable Illumination: 0Lux (18pcs IR LED's for Night Vision) |
| • Infrared distance: ≤15m |
| • Shell material: Aluminum alloy |
| • Free Operating Voltage: DC12-32 Volts |
| • Shockproof: 5G (conforms to GB-T2423056-2006 standard) |
| • Dimensions: 107(W) x 75(H) x 70.5(D) mm (without mounting) |
| • Weight : 450g |
| • One Year Warranty |
DC12V Mobile Power With Aluminium Alloy Housing IP67 Waterproof Stronger Magnetic Base Mount
3.5 hours Fully Charged Approx. 14 hours of power to operate one digital wireless camera if there is not any Camera IR light Usage. Approx. 7 Hours if the Camera is running on full IR Lights because there is no external light source.
Fast charge, input/output overvoltage protection, overcharge/discharge protection, input overcurrent protection, short circuit protection, reset protection, temperature protection, Light load protection, battery PTC(Positive Temperature Coefficient) protection.Supports QC fast charging from 5V to 12V. Over 500 Cycle Lifespan.
18650 Li-ion Cells DC12V Mobile Power (R-KDW12VPP26) |
| • Type Battery ：Li-ion battery (Panasonic 18650 Lithium-ion cell original import) |
| • Cell Capacity ：3300mAh / 11.1V 36Wh |
| • Cell Energy : 36.6Wh |
| • Rated Capacity ：2500mAh/ 12V 30Wh |
| • Type-C Input (support fast charge)：5(V)3A -9V/(2A) -12V(1.5A) |
| • Fast Charge Mode ：QC 2.0/3.0 Agreement 9V/2A, 12V/1.5A (USB adapter needs to carry own QC agreement) |
| • DC Iuput (DC5.5 *2.1) ：12V / 1A (12W Typ.) |
| • Charging Method ：Constant Current (CC) 2A (0.2C) to 4.2V cut-off charge ; Constant Voltage (CV) 4.2V 100mA to charge off; 5A (0.5C) Charging |
| • Maximum Input Power : 18V |
| • Input Current: 1.5A ± 10% |
| • Maximum Input Current : ≤2A |
| • Output Voltage: 12V ± 5% （Actual Output Range: 11.4~12.6V ± 5%) |
| • Output Current: 1.0A ±10%(Output Current Range: 0.06~1A) |
| • Conversion Efficiency: ≥85% |
| • Power Stability Accuracy: ≤10% |
| • Noise Level: ≤50dB |
| • Charging Overvoltage Protection (Cell): 12.6V |
| • Charging Overcurrent Protection (SW): 1.5A |
| • Discharging Undervoltage Protection (Cell): 8.4V |
| • Discharging Undervoltage Protection (SW): 9.3V |
| • Output Overcurrent Protection: ≥1.5A |
| • Charging times: > 500 cycles |
| • Charge Interface:Type-C |
| • Discharge Interface: DC 2.1 * 5.5 male |
| • Seismic Level: 5G |
| • Waterproof Level: IP67 |
| • Installation: With Strong Magnetic |
| • Charging Working Temperature: 0 ℃ to + 45℃ |
| • Discharge Working Temperature: -10℃ to + 50 ℃ |
| • Storage Temperature: -30 ℃ to + 60 ℃ |
| • Dimensions (mm): 108mm x 75mm x 29.5mm (without tails) |
| • Housing: Aluminium Alloy |
| • Installation: Magnetic Mounting (Built-in N52-D15H4 Strong Magnet) Front Pulling Force >25KG, Side Pulling Force >12KG |
| • Input Interface: Type-C |
| • Output Interface: DC5.5/2.1 Male |
| • Weight: 700g |
| • One Year Warranty |
Battery Dimensions: mm
| 4 High-Brightness Blue LED Indicators, Activated by Button Press |
| BATTERY CHARGING And DISCHARGING STATE |
| • 1 LED flashing, the battery power: 0~25% |
| • 2 LED On, 1 LED flashing, the battery power: 25~50% |
| • 3 LED On, 1 LED flashing, the battery power: 50~75% |
| • 4 LDE on, 1 LDE flashing, the battery power is 75~99% |
| • 4 LDE on, the battery power is 100% |
| • The battery charging time is approx.2~4 Hours |
| • Using a DC12V/2A USB charger will take approx. 2 Hours |
| • One Illuminated Green LED : Working Condition |
| • First Blue LED Flashing : Low Voltage Warning ( when voltage drops below 9.5V) |
| • Heat Dissipation Method: Natural Air Cooling |
| • Relative Humidity: 10%~90% |
Strong magnetic camera / monitor base that attaches to the camera or monitor bracket that can be mounted onto magnetic surfaces.
Camera Magnet Bracket |
| • Products Compatible：NAS Cameras With U-Support Brackets |
| • Testing Standard：The 4.12.4 Term Of ISO16750-3 For Vibration Test- Able To Keep Still For 8 Hours When The Value Of Root Mean Square is 27.8m/s² |
| • Installation Instruction：Fix The Magnetic Base To The U-Support Bracket of Camera And Attach the Camera To The Vehicle |
| • Accessories：Washer d5 x 1, spring washer d5 x 1, hex-head screw M5 x 8 |
Front View:
Back View:
Dimensions: mm
Accessories
Application: Fix The Magnetic Base To The U-Support Bracket of Camera And Attach the Camera To The Vehicle
